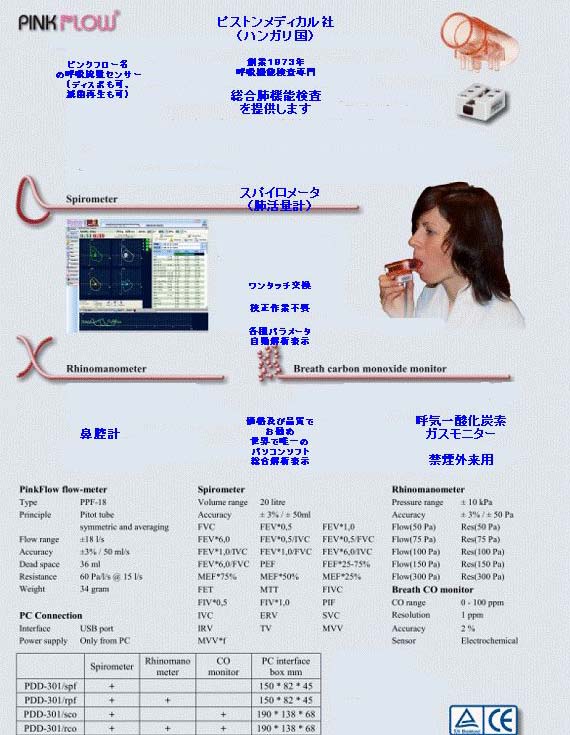

# ピストンメディカル社製
(ハンガリ国)


#禁煙外来用 #一酸化炭素ガス
#世界特許登録済
及び

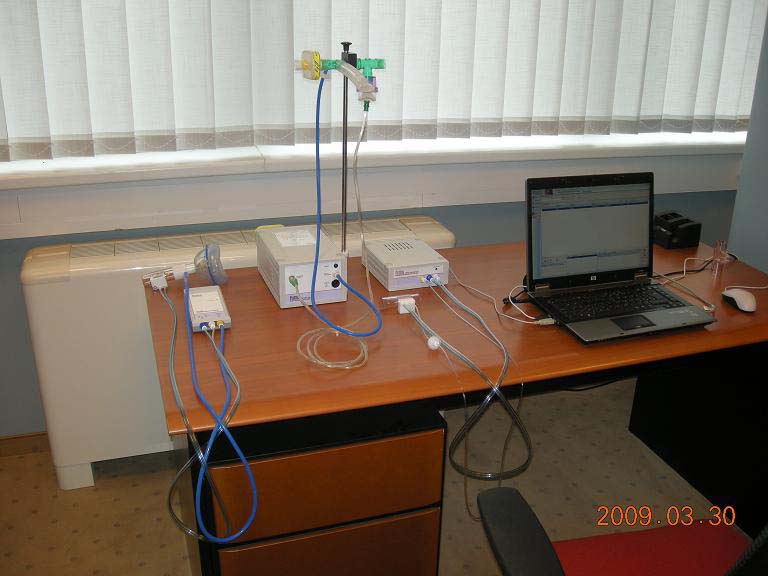

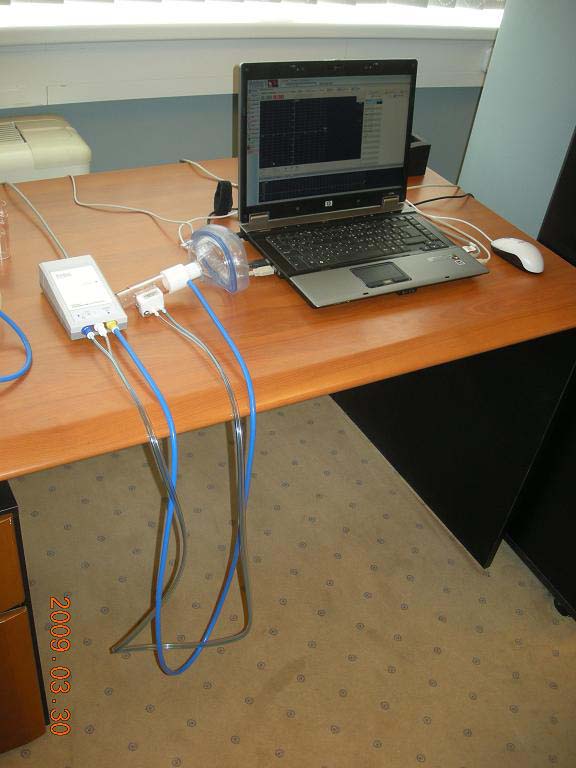

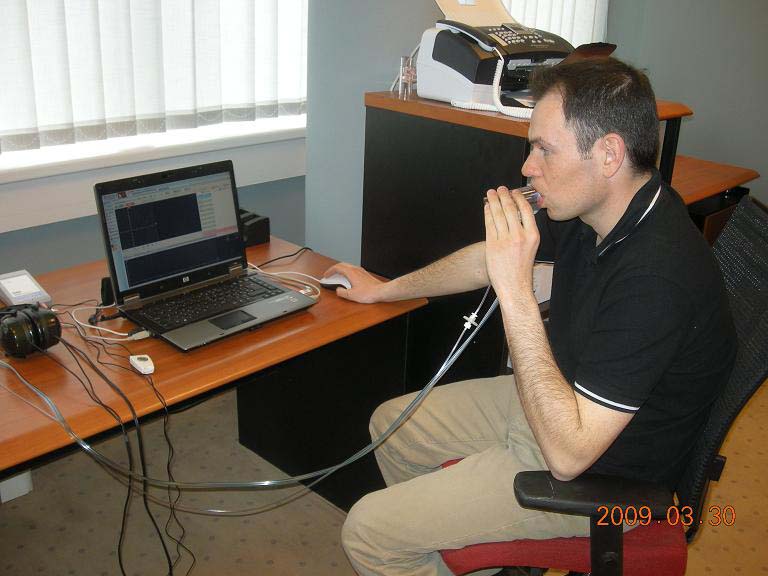

スパイロメータ
鼻腔計

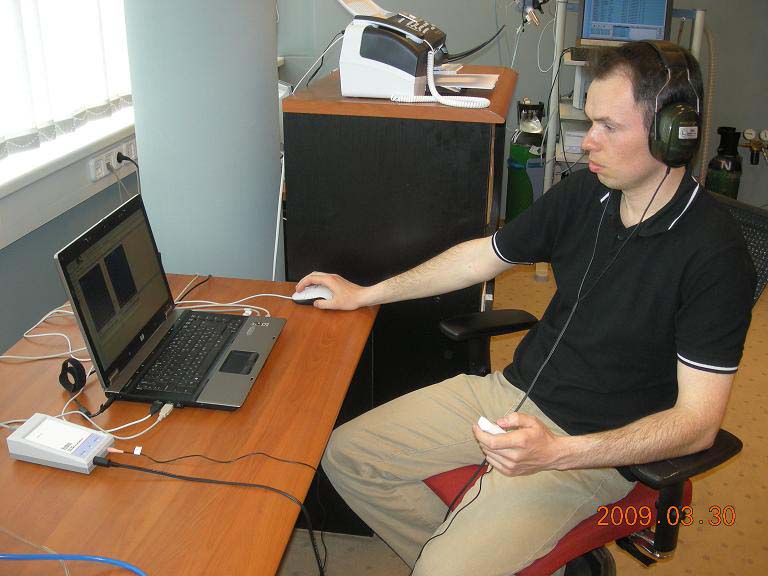

オジオメータ

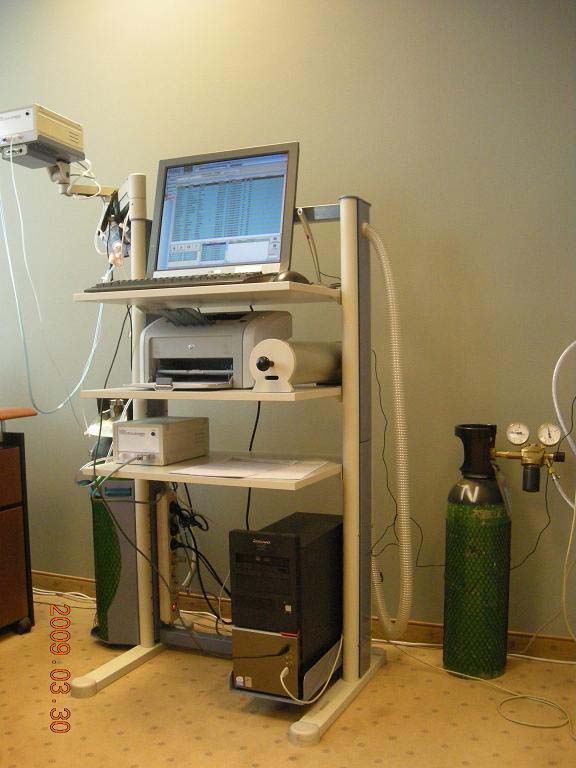

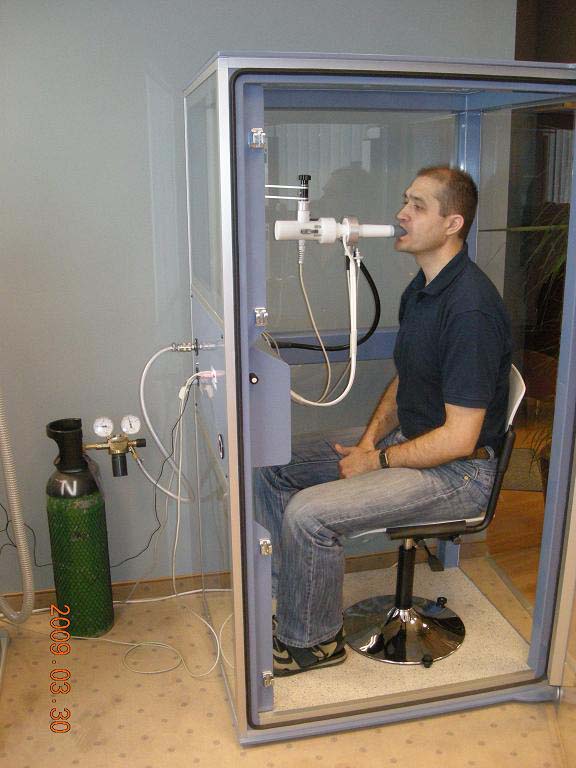

肺機能検査システム

特徴
欧州及び中近東及びアジア
へ販売されています

FDA/CE等 マーク認可

ご注意 本邦では薬事申請準備中



現在研究向け



世界に、この構成の類似品は無い

#一酸化炭素ガス成分の分析は、#深吸気時、#呼吸停止時、#深低速呼気時を提供します。

#一酸化炭素センサー

基本的に、一回使用のようなディスポ品は不要

弊社では、近来のパソコン応用医療機器について世界の価格競争力及び先端性のある製品を
ご紹介しております。何しろ、一社ですべてを扱うことができません。今後を見据えて、
当該分野にご進出ご計画の会社様とともに進出できれば幸甚です。

ご存じのように、パソコン式医療機器は操作性が単純でない為、特に本邦での普及が
世界に比べ、極端に遅れています。

パソコン式システムの最大の特徴は、
1、ハード部分のパソコンが容易に交換できる
2、ソフトウエアがほとんどの為、機能を要求に合わせることができる
3、インターネット、院内ラン、ブルーツース等を利用できる
4、データ管理が安価に構築できる
5、多種に医療機器を組み合わせて利用できる
などが想定されます。これはほんの一部です。

一番は経済性と考えます。医療費の増大に最大の解決方法を提供します



PCの機能が向上し、Descrete Wavelet 手法が、お求めやすい低価格で実現し、

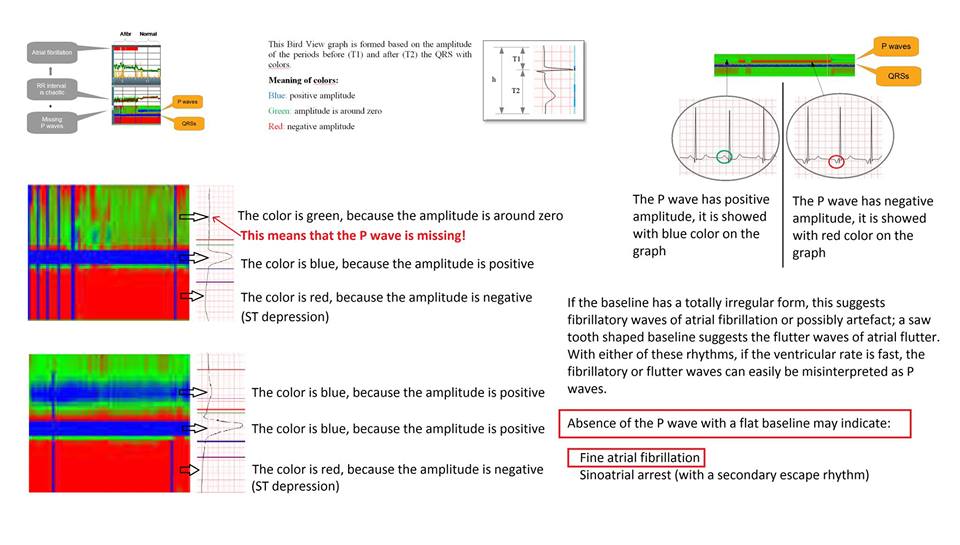

#心房のP波を自動検出できるようになりました、#心房細動の自動解析能をお試し賜われれば幸いです


臨床用 #薬事2008年認可済 メディカルテクニカは、2002年に本邦導入

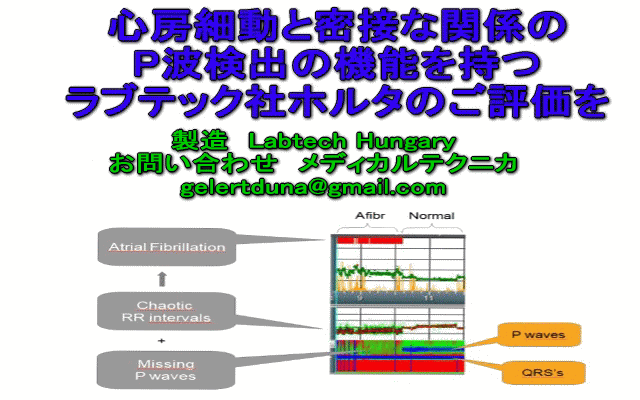

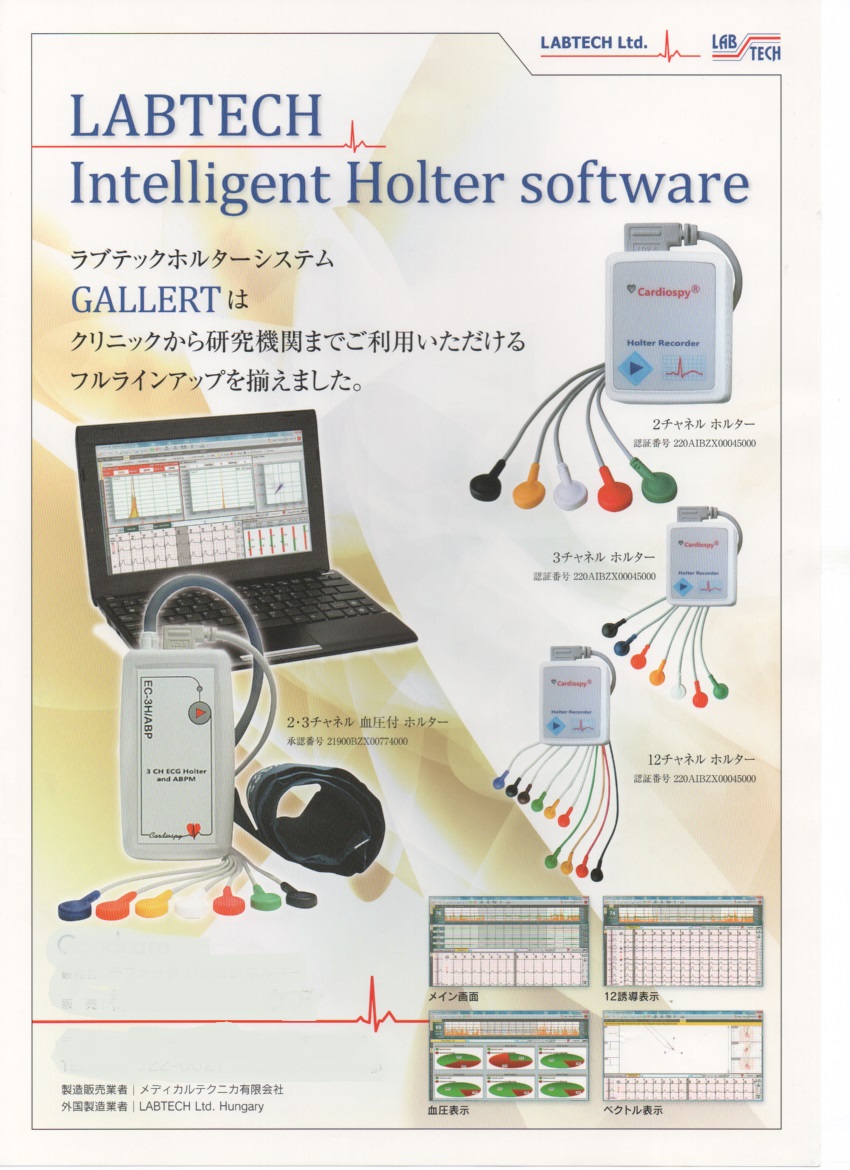

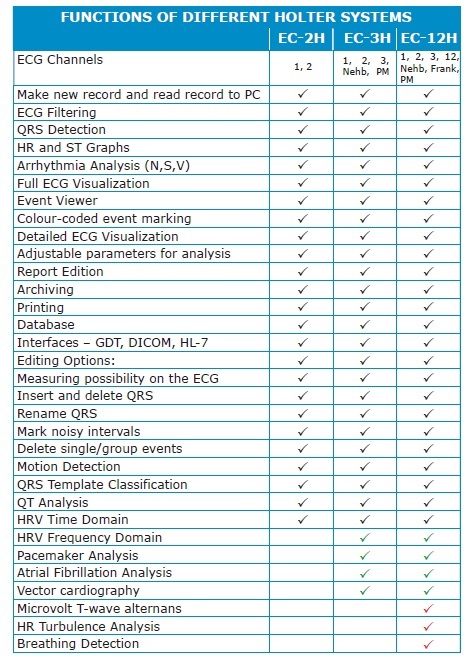

#Labtech社は、当社独自の方法による #P波自動検出と #心房細動自動解析手法

#T_Wave_Alternans 解析手法を開発し、当社ホルターに搭載。


#VectraCardiology, #Heart_Rate_Variability , #TWA_オルタナンス

#Turbulence、#3D可変表示、#Spectral Analysis等が装備

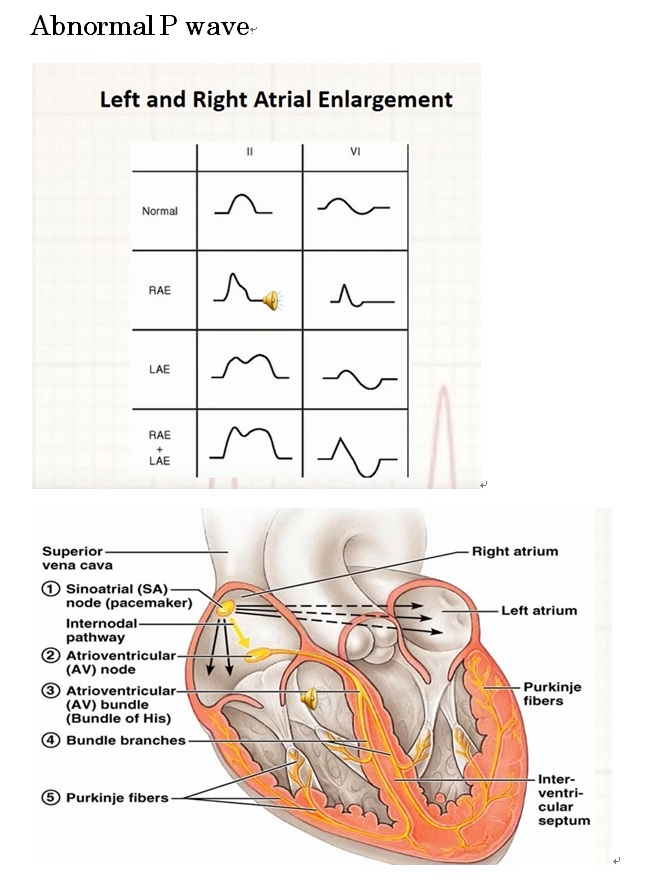

Theory of the P wave detection

The algorithm first finds the  the possible positive and negative wave peaks
based on zero transition searching, then validates them with comparing
to reference P waves.

The P wave detection needs high amplitude resolution. This value is better,
than 0.6 uV / bit in the Cardiospy system.  With this resolution and
the effective filter system which uses wavelet transformation,
the Cardiospy system is able to detect P waves less than 50 uV of amplitude.



Validation of the P wave detector

The validation is carried out on 10 pcs 12 channel and 10 pcs 3 channel ECG
reference records. The reference records include the P wave  annotation.  12
of the 20 records are taken from the MitBih database, 8 records are
taken from the Labtech database (30000 ? 30007).  12 ch records

s0014lre, s0292lre, s0302lre, s0331lre, s0364lre, s0422_re, s0431_re,
s0437_re, s0549_re, s0550_re3 ch records

mgh001, mgh007, 30000, 30001, 30002, 30003, 30004, 30005, 30006, 30007

 Validation result:

Sensitivity:                       95.42%

Positive predictivity:         97.16%

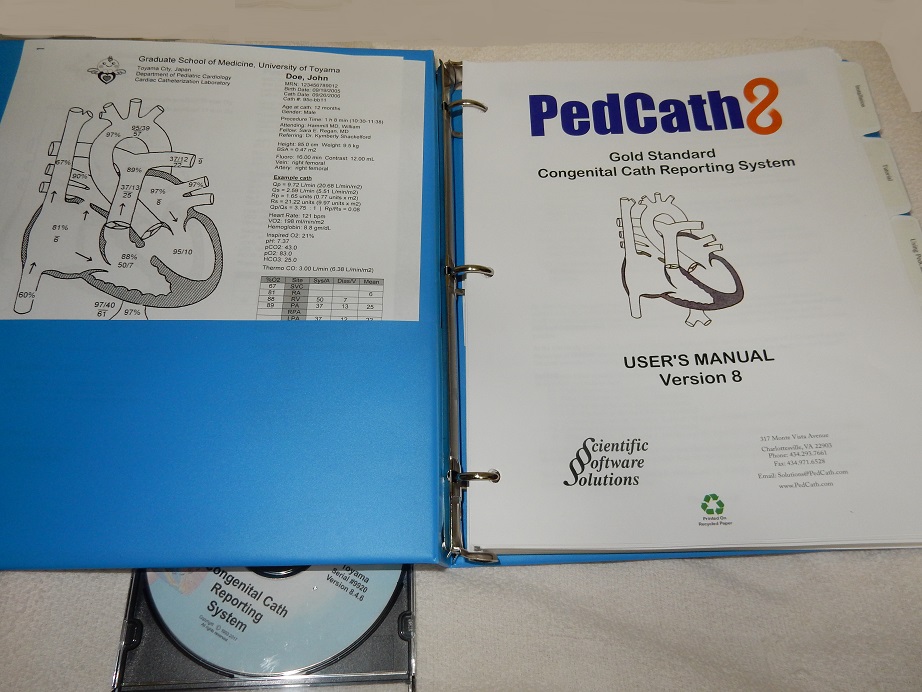

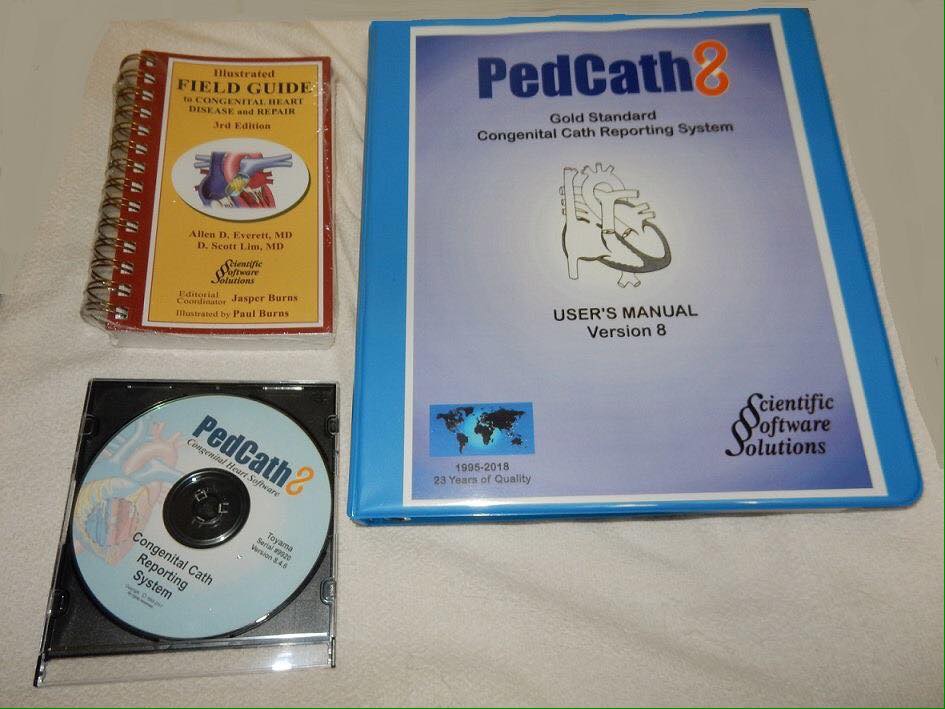

#先天性心疾患の教科書 #Pedcath8

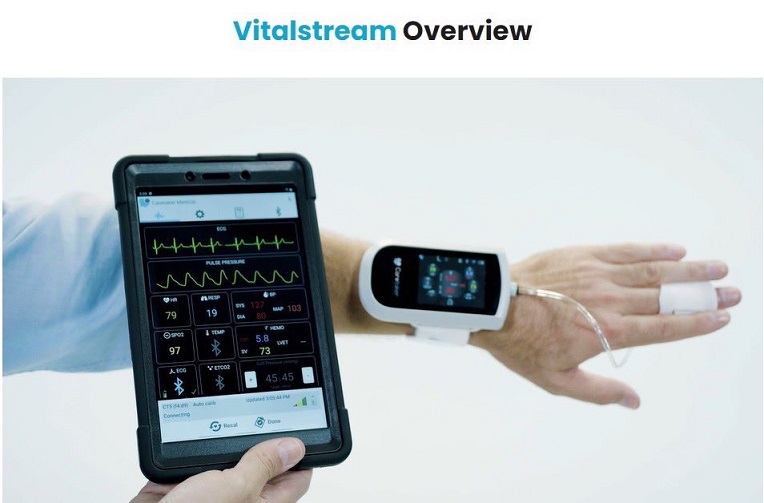

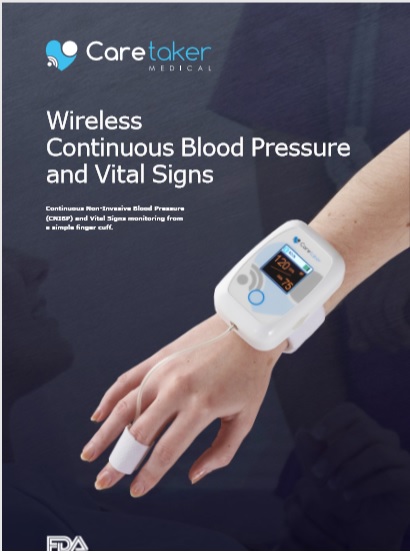

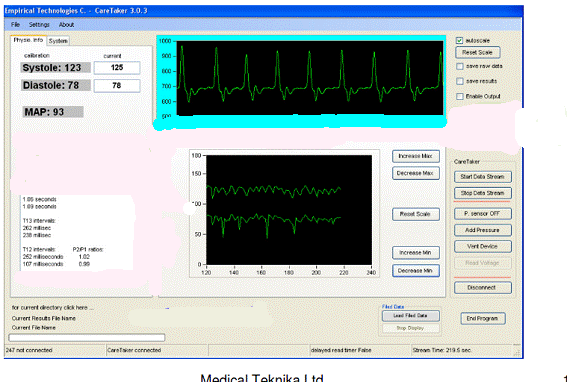

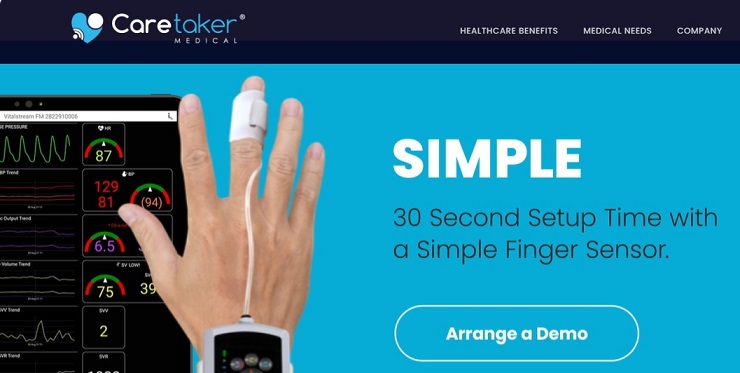

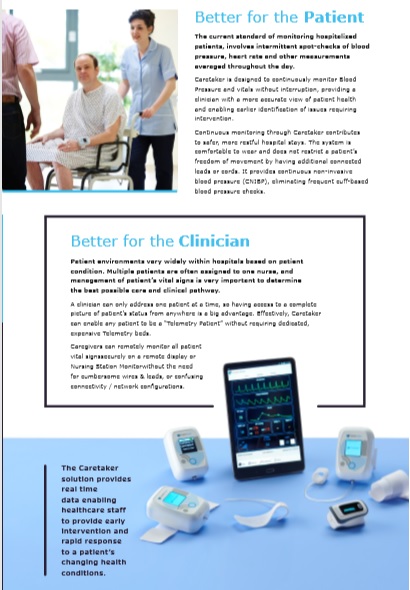

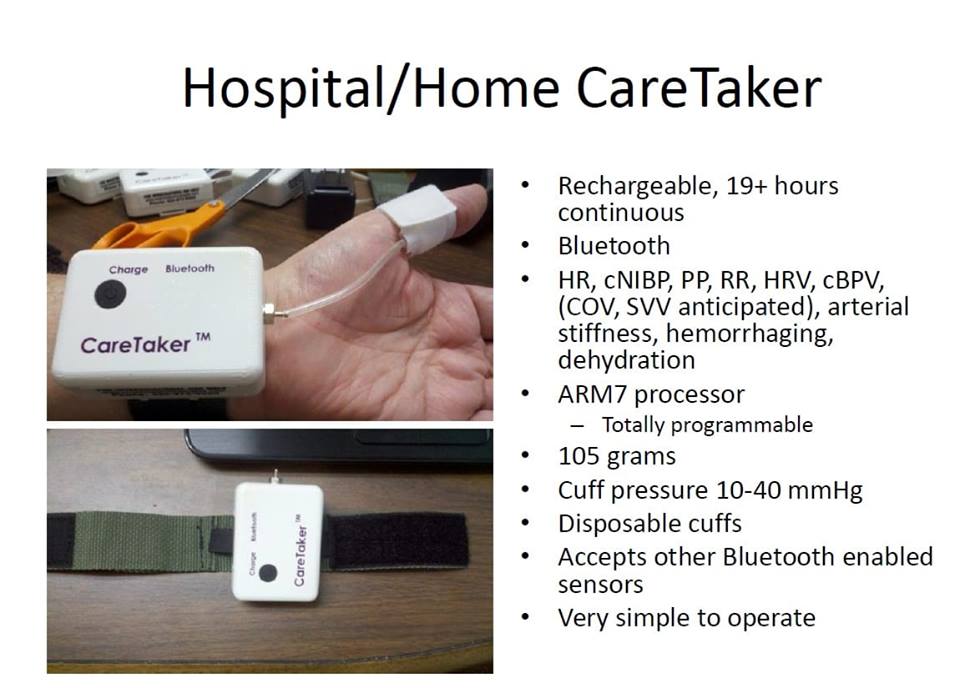

米国 #Caretaker_Medical 社 #Cretaker_type3_type4

#VitalStream_type1_type2_type3

#非観血式で、#連続観血血圧を解析できる ( #米国FADに2017年認可)

#世界最先端ディジタル搭載 #世界最先端医療新技術搭載、#世界最先端生体情報パラメータ解析搭載


本邦は、#2007年から研究向けに #バックアップをご用意、#ご注文に際しては #仕様のご確認を

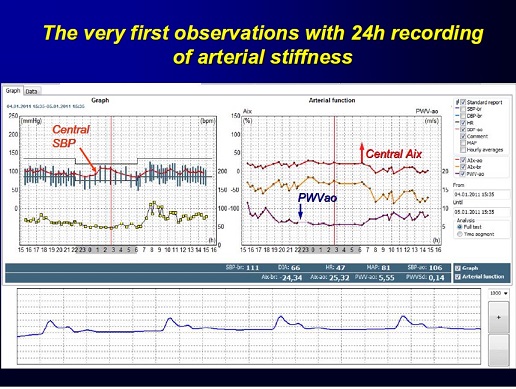

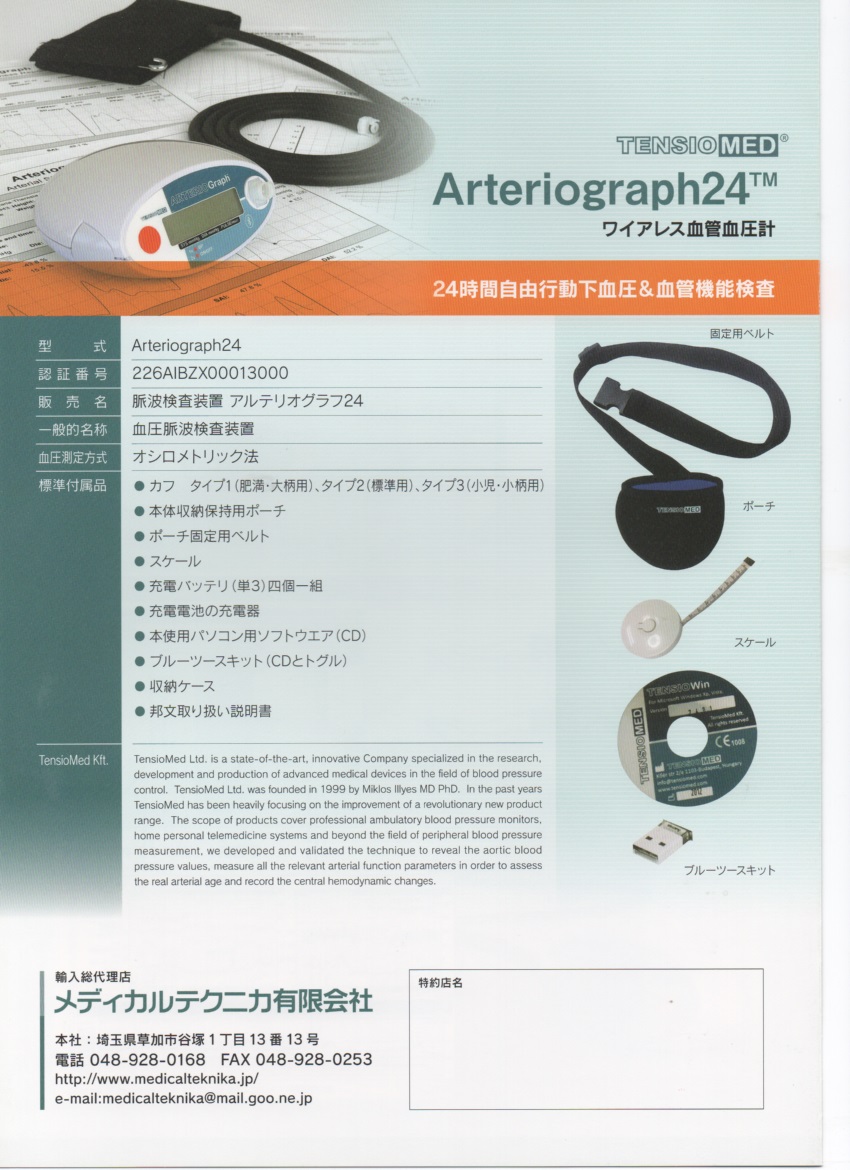

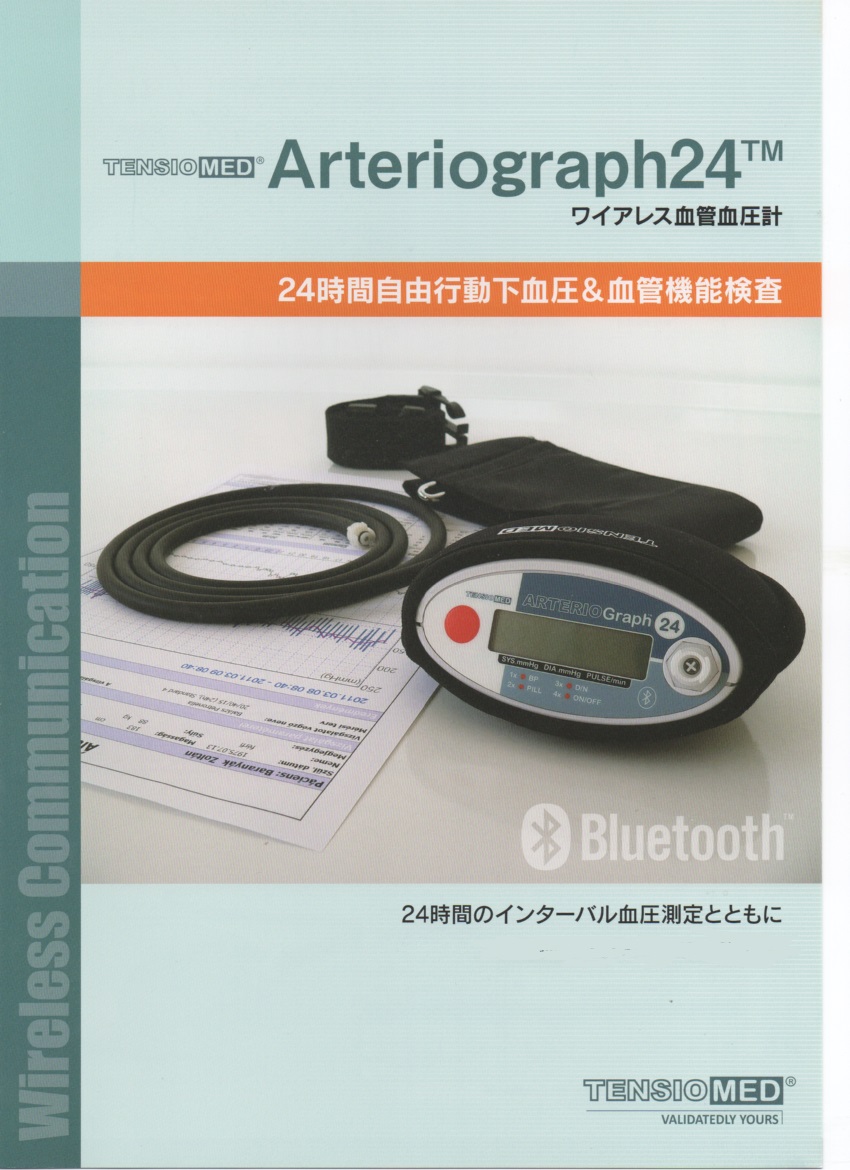

Tensiomed 社 Arteriograph 24 血管脈波検査装置

ご注意:中心血圧と関連機能は検証が必要です、


臨床用ー薬事認可済

Central blood pressure: current evidence

and clinical importance

Carmel M. McEniery1*, John R. Cockcroft2, Mary J. Roman3,

Stanley S. Franklin4, and Ian B.Wilkinson1

1Clinical Pharmacology Unit, University of Cambridge, Addenbrookes Hospital, Box 110, Cambridge CB22QQ, UK; 2Department of Cardiology,Wales Heart Research Institute, Cardiff

CF14 4XN, UK; 3Division of Cardiology,Weill Cornell Medical College, New York, NY 10021, USA; and 4University of California, UCI School of Medicine, Irvine, CA 92697-4101, USA

Received 29 April 2013; revised 27 November 2013; accepted 17 December 2013; online publish-ahead-of-print 23 January 2014

and central pressure. Therefore, basing treatment decisions on central, rather than brachial pressure, is likely to have important implications

for the future diagnosis and management of hypertension. Such a paradigm shift will, however, require further, direct evidence that selectively

targeting central pressure, brings added benefit, over and above that already provided by brachial artery pressure.

Central pressure Blood pressure Anti-hypertensive treatment Cardiovascular risk

Introduction

The brachial cuff sphygmomanometer was introduced into medical

practice well over 100 years ago, enabling the routine, non-invasive,

measurement of arterial blood pressure. Life insurance companies

were among the first to capitalize on the information provided by

cuff sphygmomanometry, by observing that blood pressure in

largely asymptomatic individuals relates to future cardiovascular

risk?observations that are nowsupported by a wealth of epidemiological

data.1 The most recent Global Burden of Disease report2

identified hypertension as the leading cause of death and disability

worldwide. Moreover, data from over 50 years of randomized controlled

trials clearly demonstrate that lowering brachial pressure,

in hypertensive individuals, substantially reduces cardiovascular

events.1,3 For these reasons, measurement of brachial blood pressure

has become embedded in routine clinical assessment throughout the

developed world, and is one of the most widely accepted surrogate

measures for regulatory bodies.

The major driving force for the continued use of brachial blood

pressure has been its ease of measurement, and the wide variety of

devices available for clinical use. However, we have known for over

half a century that brachial pressure is a poor surrogate for aortic

pressure, which is invariably lower than corresponding brachial

values. Recent evidence suggests that central pressure is also more

strongly related to future cardiovascular events4 ? 7 than brachial

pressure, and responds differently to certain drugs.8,9 Appreciating

this provides an ideal framework for understanding the much publicized

inferiority of atenolol and some other beta-blockers,10 compared

with other drug classes, in the management of essential

hypertension. Although central pressure can now be assessed noninvasively

with the same ease as brachial pressure, clinicians are unlikely

to discard the brachial cuff sphygmomanometer without

robust evidence that cardiovascular risk stratification, and monitoring

response to therapy, are better when based on central rather

than peripheral pressure. Central pressure assessment and accuracy

will also have to be standardized, as it has been for brachial pressure

assessment with oscillometric devices. This review will discuss our

current understanding about central pressure and the evidence

required to bring blood pressure measurement, and cardiovascular

risk assessment into the modern era.

Physiological concepts

Arterial pressure varies continuously over the cardiac cycle, but in

clinical practice only systolic and diastolic pressures are routinely

reported. These are invariably measured in the brachial artery

using cuff sphygmomanometry?a practice that has changed little

over the last century. However, the shape of the pressure waveform

* Corresponding author. Tel: +44 1223 336806, Fax: +44 1223 216893, Email: cmm41@cam.ac.uk

Published on behalf of the European Society of Cardiology. All rights reserved. &The Author 2014. For permissions please email: journals.permissions@oup.com

European Heart Journal (2014) 35, 1719?1725 doi:10.1093/eurheartj/eht565



Pressure measured with a cuff and sphygmomanometer in the brachial artery is accepted as an important predictor of future cardiovascular risk.However, systolic pressure varies throughout the arterial tree, such that aortic (central) systolic pressure is actually lower than corresponding brachial values, although this difference is highly variable between individuals. Emerging evidence now suggests that central pressure is better related to future cardiovascular events than is brachial pressure. Moreover, anti-hypertensive drugs can exert differential effects on brachial and central pressure. Therefore, basing treatment decisions on central, rather than brachial pressure, is likely to have important implications for the future diagnosis and management of hypertension. Such a paradigm shift will, however, require further, direct evidence that selectively targeting central pressure, brings added benefit, over and above that already provided by brachial artery pressure.As discussed earlier, a full synthesis of the available evidence concerning

central pressure and the risk of future cardiovascular events is now required. However, it will also be necessary to determine the clinical relevance of differences between brachial and central pressure

for the individual patient, especially given the relatively high correlation between the two. Emerging data support the prognostic superiority of both 24-h ambulatory blood pressure monitoring

(ABPM)79 ? 81 andhomemonitoring81 in comparison with office measurements. Interestingly, a recent study82 demonstrated that 24-h ambulatory cuff pressures were comparable with office central pressure

measurements in the prediction of risk, although the significance of this study awaits confirmation.83 As yet, there are no data comparing the predictive value ofhomemonitoring vs. central pressure in the

prediction of risk. Ultimately, it will be necessary to evaluate the prognostic value of 24-h ambulatory central pressure.With the recent development of ambulatory central pressure systems,84,85 this is now

possible and it may be reasonable to hypothesize that 24-h central, rather than brachial ABPM would be superior in terms of risk prediction.

Medical Teknika MedicalTeknika Medical Teknika Medical Teknika Medical Teknika
Medical Teknika Medical Teknika Medical Teknika Medical Teknika Medical Teknika
Medical Teknika Medical Teknika Medical Teknika Medical Teknika Medical Teknika
Medical Teknika Medical Teknika Medical Teknika Medical Teknika Medical Teknika
お問い合わせ先 メディカルテクニカ有限会社
新型血圧測定 #ケアテイカメディカル
#VitalStream_type1
#ケアテイカ
#VitaStream_type2
血圧制御
#VitalStream_type3
#ケアテイカ
#VitalStream_caretaker
#ケアテイカ案内
#VitalStream_Cardiac_Surgery
#ケアテイカのカフの位置
#VitalStream_Hypertension
体内血圧測定
#MRI下非観血連続血圧計
アルテリオグラフの中心血圧測定 オーグメンテイション フレイルティメータ 中心血検証をお願いします
アルテリオグラフの文献例

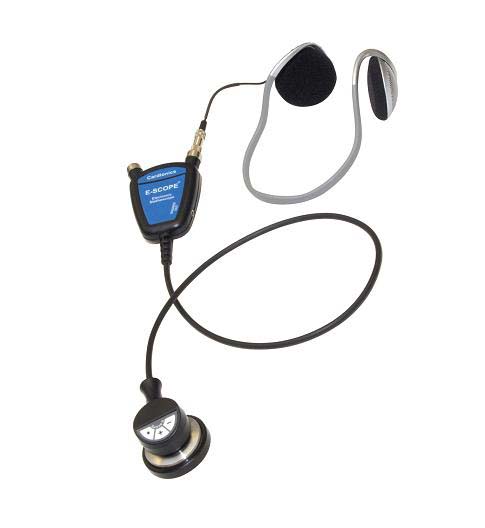

聴診等用標準器 医療機器校正器類 カルディオニクス製製品 カルディオニクス製シミュレータ
